Glass Visit

After a Visit to Dixon Glass to discuss my prototype jug I am very excited, I met the friendly staff there, and gained a better understanding of more industrial glass blowing. I spent some time with David, who was making a custom container, he explained how each item starts out from a 5ft long cold tube and is heated. Constant turning and heat allows the glass to become malleable and not crack.

When shaping the form more or less heat is added, depending on the desired shape. The process of lampworking is very similar to that of a lathe, whilst the form is being shaped, the piece is attached to another piece of glass, once nearly finished the form and extra piece of glass are separated. This causes the glass to behave in a sticky and stringy manner, similar to chewing gum. the excess is removed and the rest smoothed out with a tool, similar to that used in hand blown glass.

The glass is then left to cool slightly. To remove it from the rest of the tube, a line is scored on the glass; an intense flame then follows this mark around the circumference of the glass. Water is then added, causing thermal shock, and then in theory allowing the crack neatly. The glass then is placed in a kiln to cool at a steady rate. I will be returning to get pictures or a film of the glass being made, to accompany my prototypes.

Measuring the Everyday

I have been collecting objects surrounding the topic of measure for since I started this project. With all the items I have collected I aim to produce a small book including a brief introduction and a couple of lines describing why I have chosen each item, in a really simple layout. I huge inspiration for this has been books such as Russian Folk Artefacts, Usefulness in Small Things, Factories and Objectified.  I also have confirmed the production of my glass and it should be commencing in the next two weeks, so a visit will be in order soon. I have decides on the format for the book and typefaces, I will be photographing all my findings on Wednesday, here is my progress thus far.

Orator Std and Helvetica Light

Prototyping

I have been researching in more depth for the past week which lampworkers and industrial glass blowers to contact and have received a quote from one. This is reassuring, at least I now know the product can be produced. I just sent in a 3^rd angle hand drawing, also describing the graduation I would like on the product and the material specification. However the quote is more than I anticipated so a batch of ten would probably be out of the question. I am going to wait two more days until I have received all the other quotes and weigh up which seems the best in terms of service and co-operation. It is a shame that it cannot be a small batch, considering this project focuses on production however in my presentation at the degree show this could be communicated in other ways.

Once I have decided on a quote, hopefully in the next two days I will be able to organise a visit and determine production and lead times. This weekend I aim to photograph some of the items I have collected in relation to measure in order to produce a couple of pages of my measure publication and write the foreword, explaining my intentions, findings and interests.

Contrast Between Metric and Imperial

I have been deciding what measurements to include on my measuring jug, thus far I have decided on imperial one side and metric the other. I want to make the jug functional, yet I do not want to compromise the element of volume perception. I have been thinking of how the product will be packaged, so did some screen printing today using brown card and white ink. To subtlety indicate the origins of each measuring system, the font for the metric side is Letter Gothic Standard and the imperial side is Lucinda Fax. I think the simple graphic works well but perhaps adding measurement markings would be clearer, but for an initial design I am pleased with it. I want to stay clear of red markings as I feel it references pyrex too much, instead I intend to use a pale grey, which is discreet, yet visible when using liquids such as milk. For next week I intend to have finished my CAD drawing, along with render, ready to send to manufacturers in order to get a quote. I would ideally like to prototype a small batch, of ten or so as I really want to communicate that this product is fit for retail.

Picking up where I left off

I have been working on my dissertation and major project since Christmas, so have not done much on this project, but it has been in the back of my mind. Since this time I have still been accumulating measuring devices and vessels with reference to measure as I aim to create a book of measures to show my research and investigations into the perception of measure and how it has developed. Last Thursday I began drawing the jug on CAD, and started sketching possible measure styles, ranging form just lines describing one quarter, a half and 3 quarters o f a pint, along with these measures translated in millilitres. Because the object is so simple I aim to keep its intention really obvious, whilst still maintaining an element of accuracy through functionality. My next step is to finish my CAD drawing in order to send to manufacturers to get an idea of costing and lead times. Along with designing the packaging.

No longer a family of objects

Week 6

Due to the vast amount of research I have done for this project, the only option to communicate it all has seemed to be a family of objects. However from the final crit a couple of days ago, the decision has been made to solely carry on with the pint jug, which may perhaps lead to other vessels? And use the other areas of focus for exploration of volume. I feel it is important to still include these areas as it has informed my decision making and reasons for doing certain things. I aim to create some kind of visual representation of my findings, perhaps in the form of a book to accompany the Pint jug.

I feel more confident now about my idea, I would much prefer to create one strong object fit for retail, as opposed to 3 or 4 weaker objects. I value the research I have done for this project and feel it will definitely inform future work, perhaps in our second project where my area of focus is hand held appliances.

The frustrating thing about this is the inability to be able to work with the glass myself, the slumping technique I have been using works to an extent, however due to being unable to cool at a steady pace it inevitably cracks.

I will look into getting this prototyped; perhaps through lampworking as the current method of manufacture for pint glasses is press and blow molding and is on a mass scale of around 400000 units.

The other areas I looked at were looking at the existing as forms of measure through bottle caps. An idea that came from ambiguous measures such as a splash and a dash and how the cap could offer a dual function.

I also was experimenting with different proportions of the same volume in order to get people to question and understand amounts more. This I feel is an exercise that could be ongoing and could feature in the visual piece to accompany the pint jug, through creating 5 alternative forms of packaging for 200, 330ml and so on.

I feel the project is now at a good place I know what needs to be done and it has direction, so a break from it to concentrate on my dissertation and forthcoming project seems wise.

The familiar, informal measure, empowerment and proportion

Week 5

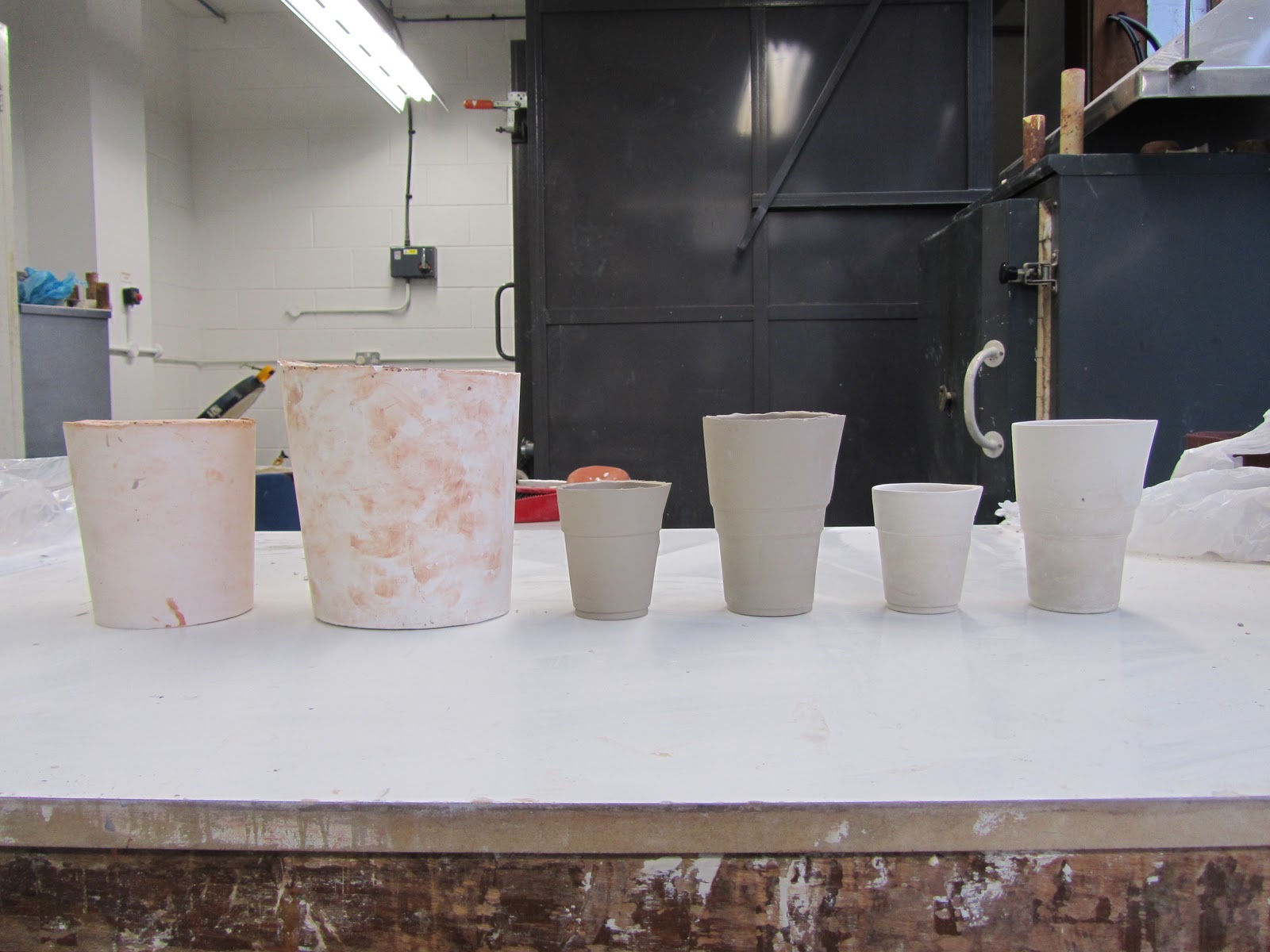

For the past week I have been slip casting the familiar form of the disposable pint glass. It has been interesting as I have learnt a new process, and it has given me a really literal understanding of the form I am working with and the notions of volume. I have expressed this in relation to one of the four areas in which I aim to create a family of objects:

The familiar:

How we associate measure with certain things, looking literally at different forms and the similarities they share. Executed by exploiting the obvious as a means of understanding.

I really like the result of the ceramic cups and the process is very rewarding. However; despite this this I have came to the conclusion that glass would be a more suitable material for the pint measuring jug I am trying to create. For the prototype I am to deliver next week, I will slump another pint glass and sand blast subtle markings in order to create a familiar yet alternative to the typical measuring jug.

I have become slightly obsessed with slip casting and the pint form, however I aim to finish that today and move on to the other areas I have defined. Another area I aim to look at is; iinformal measure:

Using the idea of approximation and guesswork as defined through human dimension using natural units to create tools. This offers more freedom and allows the user to instinctively measure and build confidence.

I want to create a product that encourages the use of the human body as a unit for measure; as it has become de humanized, a theme that has re occurred throughout this process. I aim to look at methods of measure by observing behavior and analyzing current methods of measure.

Empowerment:

Making consumers more confident, by using their surroundings as a tool. Enabling people to look at measure in a less regimented way through the use of existing forms, therefore taking the familiar and creating a dual function. This relates to my previous research of association, for example 1kg=a bag of sugar. Using everyday items, as a form of measure is really interesting and dates back to the 18^th century. From looking at a cookery book called; the art of cookery, made plain and easy: which far exceeds any thing of the kind yet published... by Hannah Glass. A revolutionary cookery book, which deals with wholesome British food. Interestingly one of the methods of measure is, ‘the amount of shredded parsley and sage that will fit on one sixpence’. I just find this so fascinating, how currency was used as it has a nationally uniform size, yet is unhygienic. I want to create a product with a similar principle that we relate to in current society, this may well be achieved by appropriating the existing.

Proportion

Observing what we understand volume or measure to be through different shapes as a means of educating people. Allowing them to trust their judgment more. This exercise started back with packaging, it could be a marketing led product designed to be a catalyst for change and awareness. I will continue to experiment with this through looking at packaging and making alterations through models. Then obtaining peoples opinions of the results.

Key themes that link this family of objects:

Products that provide a relationship between the user and task in hand

What I want to achieve:

Human informed tools/products

Subconscious methods of education

Products that blend into the everyday

A strategy for change; that may perhaps inform my future project, in terms of:

Efficiency

Waste

Value

In the next week I aim to finish my prototype of the glass jug and have a good idea of the costing criteria. I then intend to develop each of the other areas more through research led investigation and model making.
